PUNCHES

Line up

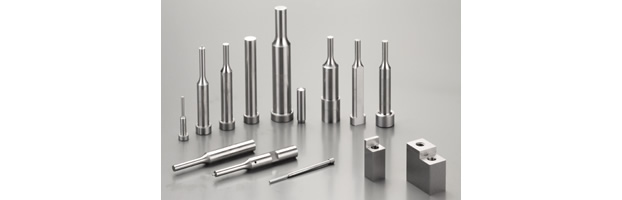

Tip Min~Max
1.6~45
Overall length Min~Max
20~150
Finish
R coating / Standard / Lapping / F coating / TiCN
Type
Punches / Heavy Load Punches / Punches with Center Hole / Punches with tap hole / Punches with key groove / Shoulder held Punches / Shank cut Punches / Straight Punches / Punch Blanks / Ejector Punch Blanks / Mini Punches / Straight Mini Punches / Ejector Pin Sets / Spacers for Punch / Punch Holders / Fixing Keys for Punches with Key Groove / Slotted Keys
Material
SKD11 / SKH51 / SKH40
Delivery
3 working days~※Urgent shipment service "QUICK service"

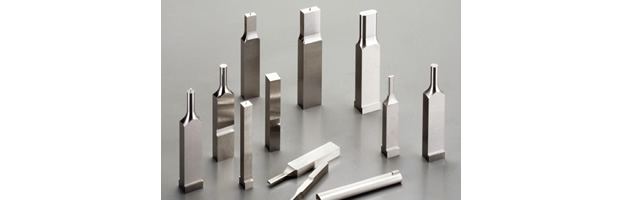

Tip Min~Max
2~50、2~30
Overall length Min~Max
13~100
Finish
Standard / F coating / TiCN
Type
Block Punches / Straight Block Punches / Flange Holders / Block Punch Blanks / Ejector Block Punch Blanks / Short Block Punch Blanks
Material
SKD11 / SKH51 / SKH40
Delivery
3 working days~※Urgent shipment service "QUICK service"

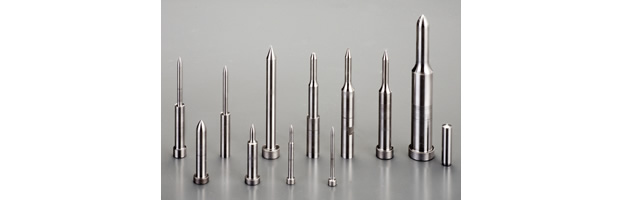

Tip Min~Max
0.5~25
Overall length Min~Max
10~112
Finish
R coating / Standard / Lapping / F coating / TiCN
Type
Pilot Punches Fixed in Stripper Plate / Staight Pilot Punches Fixed in Stripper Plate / Pilot Punches / Straight Pilot Punches / Tapped Pilot Punches / Tapped Straight Pilot Punches / Pilot Punches with Key Groove / Straight Pilot Punches with Key Groove / Pilot Punches movable / Straight Pilot Punches movable / Shoulder Held Pilot Punches / Pilot Punches with center hole / Pilot Punches -Free Size / Pilot Stripper Bushings
Material
SKD11 / SKH51 / SKH40
Delivery
3 working days~※Urgent shipment service "QUICK service"
Inquiry Form
The above products are listed in "Press catalog2012"
See web catalog
The above products are listed in "Press catalog2012"
See web catalog
The above products are listed in "Press catalog2012"
See web catalog
